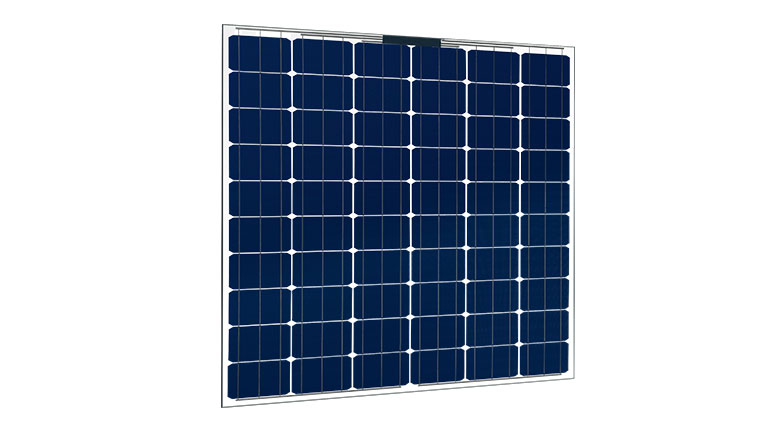

SEAM60 Series - 60 Cell

Pterosaur Dual Glass Module



  • Electrical Specification
  • Mechanical Specification
Module SEAM60T-275 / SEAM60W-275 SEAM60T-280 / SEAM60W-280 SEAM60T-285 / SEAM60W-285 SEAM60T-290 / SEAM60W-290
Rated Power (Pmpp) 275W +5/-0 280W +5/-0 285W +5/-0 290W +5/-0
Rated Current (Impp) 8.71A 8.81A 8.89A 8.98A
Rated Voltage (Vmpp) 31.58V 31.79V 32.06V 32.24V
Short Circuit (Isc) 9.18A 9.28A 9.37A 9.49A
Open Circuit Voltage (Voc) 38.67V 39.15V 39.47V 39.61V
Efficiency 16.7% 17.0% 17.3% 17.6%
Cell Type Mono-Crystalline
Cell Dimension 156.75mm x 156.75mm
Module Dimension 1662mm x 990mm x 5mm (J-box not included)
Weight 19.6Kg
Front Glass 2mm tempered AR glass
Encapsulant POE
Back Glass 2mm tempered glass / 2mm ceramic coated glass
Junction Box IP67 (three bypass diods)
Cable 4.0mm 2
Connector LCS-R1 (MC4 equivalent)
