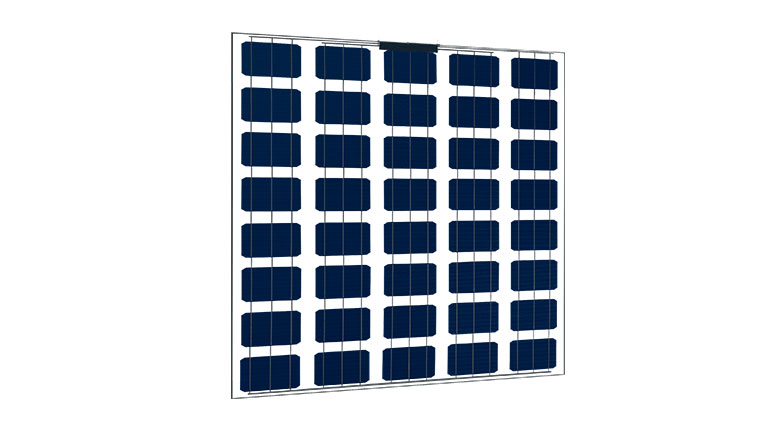

SEAM40 Series - 40 Cell

Pterosaur Dual Glass Module



  • Electrical Specification
  • Mechanical Specification
Module SEAM40-175 SEAM40-180 SEAM40-185 SEAM40-190
Rated Power (Pmpp) 175W +5/-0 180W +5/-0 185W +5/-0 190W +5/-0
Rated Current (Impp) 8.40A 8.56A 8.72A 8.90A
Rated Voltage (Vmpp) 20.84V 21.03V 21.22V 21.35V
Short Circuit (Isc) 8.87A 9.02A 9.22A 9.38A
Open Circuit Voltage (Voc) 25.49V 25.68V 25.89V 26.06V
Cell Type Mono-Crystalline
Cell Dimension 156.75mm x 156.75mm
Module Dimension 1662mm x 990mm x 5mm (J-box not included)
Weight 19Kg
Front Glass 2mm tempered AR glass
Back Glass 2mm tempered glass
