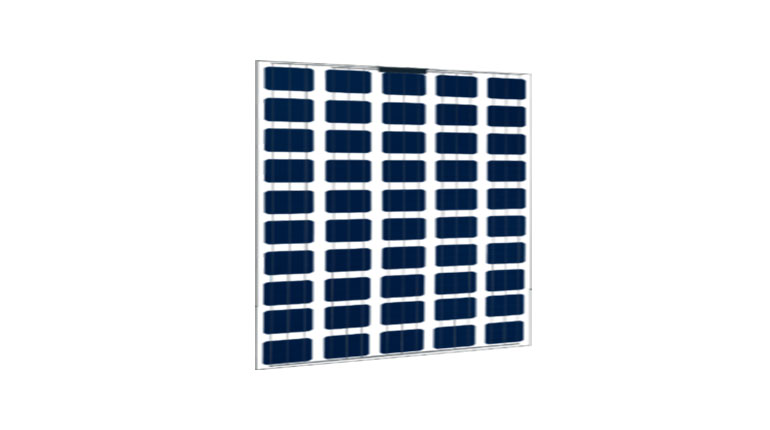

SEAM50 Series - 50 Cell

News

SEAM50 Series - 50 Cell

Pterosaur Dual Glass Module



  • Electrical Specification
  • Mechanical Specification
Module SEAM50-220 SEAM50-225 SEAM50-230 SEAM50-225
Rated Power (Pmpp) 220W +5/-0 225W +5/-0 230W +5/-0 235W +5/-0
Rated Current (Impp) 8.46A 8.57A 8.60A 8.83A
Rated Voltage (Vmpp) 26.01V 26.26V 26.75V 26.62V
Short Circuit (Isc) 8.95A 9.02A 9.18A 9.32A
Open Circuit Voltage (Voc) 31.88V 32.08V 32.29V 32.49V
Cell Type Mono-Crystalline
Cell Dimension 156.75mm x 156.75mm
Module Dimension 1980mm x 990mm x 5mm (J-box not included)
Weight 23.3Kg
Front Glass 2mm tempered AR glass
Back Glass 2mm tempered glass
