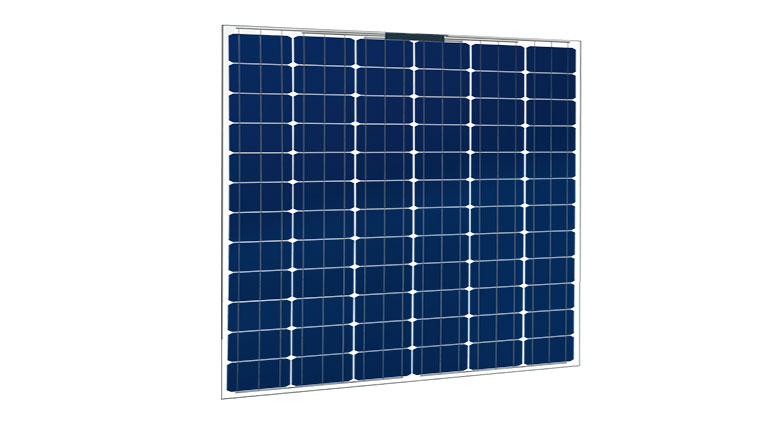

SEAM72 Series - 72 Cell

Pterosaur Dual Glass Module



  • Electrical Specification
  • Mechanical Specification
Module SEAM72T-325 / SEAM72W-325 SEAM72T-330 / SEAM72W-330 SEAM72T-335 / SEAM72W-335 SEAM72T-340 / SEAM72W-340
Rated Power (Pmpp) 225W +5/-0 330W +5/-0 335W +5/-0 340W +5/-0
Rated Current (Impp) 8.58A 8.69A 8.77A 8.88A
Rated Voltage (Vmpp) 37.88V 37.98V 38.26V 38.37V
Short Circuit (Isc) 9.03A 9.16A 9.27A 9.34A
Open Circuit Voltage (Voc) 46.26V 46.40V 46.77V 46.79V
Efficiency 16.5% 16.8% 17.0% 17.3%
Cell Type Mono-Crystalline
Cell Dimension 156.75mm x 156.75mm
Module Dimension 1980mm x 990mm x 5mm (J-box not included)
Weight 23.3Kg
Front Glass 2mm tempered AR glass
Encapsulant POE
Back Glass 2mm tempered glass / 2mm ceramic coated glass
Junction Box IP67 (three bypass diods)
Cable 4.0mm 2
Connector LCS-R1 (MC4 equivalent)
