SEAP50 Series - 50 Cell

News

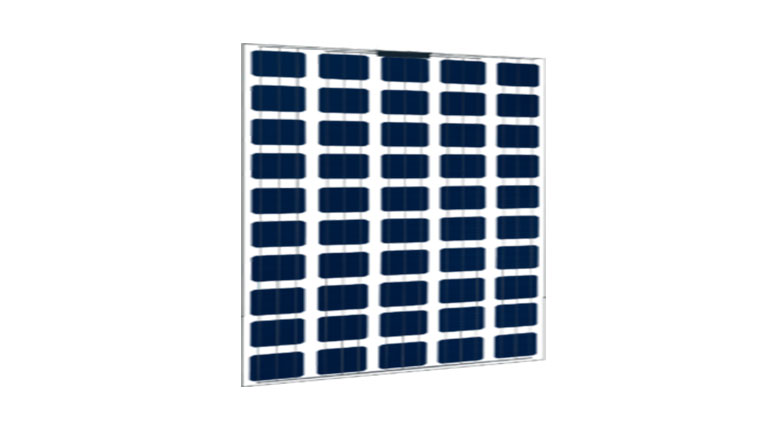

SEAP50 Series - 50 Cell

Pterosaur Dual Glass Module



  • Electrical Specification
  • Mechanical Specification
Module SEAP50-210 SEAP50-215 SEAP50-220 SEAP50-225
Rated Power (Pmpp) 210W +5/-0 215W +5/-0 220W +5/-0 225W +5/-0
Rated Current (Impp) 8.14A 8.28A 8.35A 8.47A
Rated Voltage (Vmpp) 25.80V 25.97V 26.35V 26.57V
Short Circuit (Isc) 8.59A 8.78A 8.88A 9.04A
Open Circuit Voltage (Voc) 31.62V 31.75V 31.82V 31.98V
Efficiency 10.7% 11.0% 11.2% 11.5%
Cell Type Poly-Crystalline
Cell Dimension 156.75mm x 156.75mm
Module Dimension 1980mm x 990mm x 5mm (J-box not included)
Weight 23.3Kg
Front Glass 2mm tempered AR glass
Encapsulant POE
Back Glass 2mm tempered glass / 2mm ceramic coated glass
Junction Box IP67 (three bypass diodes)
Cable 4.0mm2
Connector LCS-R1 (MC4 equivalent)
