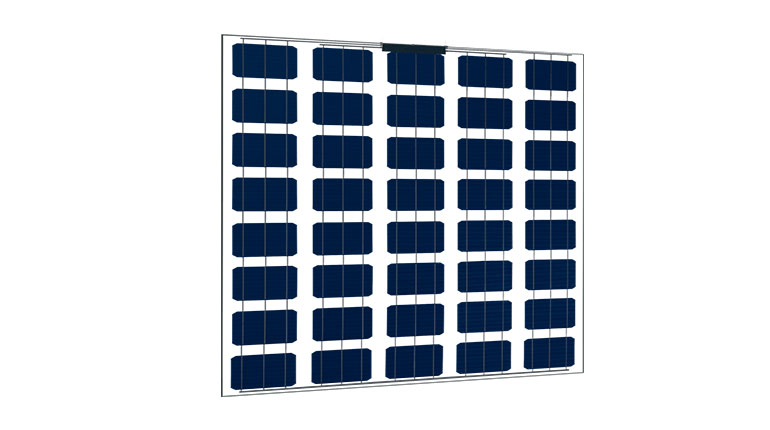

SEAP40 Series - 40 Cell

News

SEAP40 Series - 40 Cell

Pterosaur Dual Glass Module



  • Electrical Specification
  • Mechanical Specification
Module SEAP40-160 SEAP40-165 SEAP40-170 SEAP40-175
Rated Power (Pmpp) 160W +5/-0 165W +5/-0 170W +5/-0 175W +5/-0
Rated Current (Impp) 7.77A 8.00A 8.25A 8.45A
Rated Voltage (Vmpp) 20.58V 20.62V 20.67V 20.70V
Short Circuit (Isc) 8.31A 8.56A 8.83A 9.04A
Open Circuit Voltage (Voc) 25.56V 25.61V 25.67V 25.71V
Cell Type Poly-Crystalline
Cell Dimension 156mm x 156mm
Module Dimension 1662mm x 990mm x 5mm (J-box not included)
Weight 19Kg
Front Glass 2mm tempered AR glass
Back Glass 2mm tempered glass
